Crawler Concrete Boom Pump Mixer | All-Terrain Mixing & Pumping

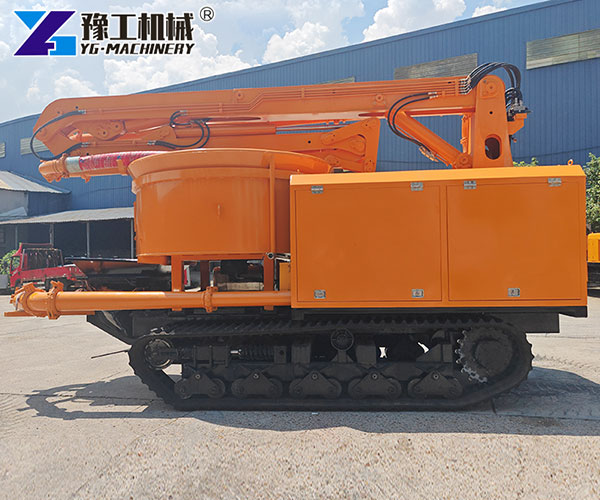

Integrated crawler concrete boom pump mixer

A crawler concrete boom pump mixer is a powerful solution for concrete placing in remote, narrow, or uneven job sites. It combines concrete mixing, pumping, and boom placing into one mobile machine with an all-terrain crawler chassis. This design helps construction teams reduce labor costs, shorten work time, and deliver concrete where trucks cannot reach. The machine can mix concrete on-site and pump it through a multi-section boom, allowing faster and cleaner placement in foundations, slopes, tunnels, and rural projects. With strong climbing ability and stable track movement, the machine keeps working even in soft soil, mud, or rainy conditions.

WhatsApp/WeChat/Phone: 86 138 3715 9132

What Is A Crawler Concrete Boom Pump Mixer?

A crawler concrete boom pump mixer is a mobile concrete delivery machine built on rubber tracks instead of wheels. It mixes raw materials, pumps fresh concrete, and uses the boom arm to place concrete accurately.
Contractors choose this type of equipment when they need:

Concrete mixing + pumping in one machine
Safe boom placement in narrow or high areas
Easy movement on slopes, farmland, and small town roads
Stable work on muddy soil or gravel ground
Lower transport needs and less waiting time

Compared to a separate mixer truck and concrete pump, this integrated machine reduces coordination problems and speeds up field operations. It also means concrete can be mixed close to the pouring point, keeping quality stable.

Why Choose Crawler Systems For Concrete Delivery?

Traditional truck mixers often cannot enter remote farmland, narrow bridges, tunnel entrances, or destroyed sites after heavy rain. Many teams spend extra time using wheelbarrows, loaders, and fixed pumps to move concrete, wasting labor and delaying pouring.

The crawler concrete boom pump mixer solves these issues:

Core Pain Points Solved

Enters steep slopes and soft terrain without towing
Mixes and pumps near the pouring point, avoiding concrete waiting
Boom arm allows controlled placement without manual labor
Reduces risk of segregation and concrete loss
Saves money by removing transport trips and extra staff

For teams working on tunnels, photovoltaic piles, rural housing, and disaster recovery, this machine provides stable daily output even when access roads are damaged or unavailable.

Crawler Concrete Pump With Mixer: Key Technical Highlights

This crawler concrete pump with mixer is designed for high reliability and long working hours in complex environments.
Major features include:

Crawler chassis: all-terrain rubber tracks with hydraulic drive
Mixing system: twin-shaft or planetary mixer for fast blending (≈5 min per batch)
Pumping system: dual hydraulic cylinders, S-valve assembly for long-distance pumping
Boom system: multi-section placement arm with 360° turret rotation
Control system: wireless remote and diagnostic functions
Size: compact body fits tunnels, narrow paths, and temporary sites
Chassis power: diesel engine with optional electric mode for low-noise areas

These systems reduce mechanical stress, improve pumping consistency, and support long-term performance in dusty or humid regions.

Request A Free Quote

Concrete Boom Pump For Rough Terrain: Technical Parameters

Specification	Unit	Value
Dimensions (L×W×H)	mm	5600×2280×3200
Machine weight	t	12
Total working weight	t	18
Engine power	kW	91
Emission standard	—	National II
Max theoretical pumping output	m³/h	50
Travel mode	—	All-terrain crawler
Max travel speed	km/h	5
Mixing volume per batch	m³	2
Max boom placing height	m	15
Horizontal placing length	m	11.8
Track size	mm	450×90×82

These parameters make the crawler concrete boom pump mixer suitable for mid-sized daily output while keeping mobility and flexibility high.

All-Terrain Concrete Mixer Pump: Core Advantages For Field Work

The all-terrain concrete mixer pump brings practical benefits to construction teams.
Main advantages:

Multi-function in one unit
The machine mixes, pumps, and places without needing separate equipment. Fewer transport trucks are required, reducing planning time.
Lower labor and higher productivity
One operator with a small crew can complete work that normally needs multiple teams.
Stable performance in rough terrain
Tracks protect the machine from sinking in mud or slipping on slopes. Jobs can continue in light rain or wet soil.
Better concrete quality control
Mixing on-site reduces delays that cause early setting or slump loss during transport.
Easier material supply
Workers only need to load aggregate and cement close to the job area, avoiding long-distance haulage.

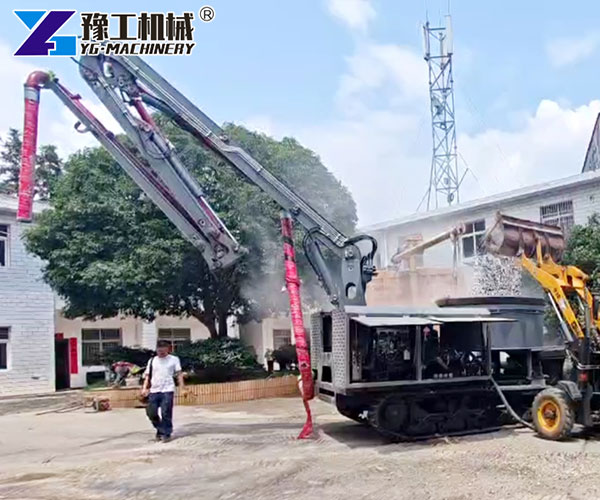

Multi-function concrete mixing and pumping machine

Request A Free Quote

Mobile Concrete Boom Pump Mixer: Best Application Fields

This mobile concrete boom pump mixer is widely used in different regions and industries because it adapts to difficult conditions. It helps contractors complete work efficiently in sites where truck mixers cannot enter.

Common application scenarios:

Mountain photovoltaic piles and slope foundations
Rural housing construction and village infrastructure
Water conservancy channels and irrigation systems
Tunnel lining and underground projects
Mining, reclamation, and post-disaster reconstruction
Narrow streets, bridges, and platform areas with weight limits

The machine provides both seasonal and year-round revenue opportunities for contractors.

Real Field Results: Time, Labor, And Cost Savings

Users report strong economic benefits after switching from standard pumps and mixers to an integrated crawler concrete boom pump mixer.

Observed performance results:

Labor costs reduced by 20–40% due to fewer workers needed
Concrete delivery time is reduced because mixing and pumping happen on-site
Reduced truck traffic helps protect small town roads and green areas
Stable concrete properties reduce rework and improve safety
ROI improves within one construction season due to continuous utilization

Contractors especially value the ability to reach isolated pouring points and complete work before weather changes.

Concrete Mixing Pumping Machine For Tunnels: Selection Guide

Choosing the right crawler concrete boom pump mixer depends on project conditions.
Main decision factors:

Terrain and accessibility
Soft soil, slopes, and narrow entry points require crawler tracks.
Pumping height and boom reach
Multi-section booms allow clean placement in tunnels and bridges.
Mixing method
Twin-shaft mixing is suitable for strong concrete strength requirements.
Power source
Diesel mode for remote work; electric mode optional for noise control zones.
Service and spare parts
Availability of quick parts shipping and remote training reduces downtime.

This selection approach helps ensure continuous work and stable project timelines.
