Electric Concrete Pump

Electric Concrete Pump Improves Working Conditions

An Electric Concrete Pump helps create a better and safer construction environment. Because the pump uses an electric motor, the output is smooth and stable during long work hours. There is no vibration from engine explosions, and the pumping system keeps a steady pressure. This makes concrete delivery easier to control, especially when working in narrow or high-precision areas.

Another major benefit is that the machine produces no exhaust emissions. Workers do not need to worry about fuel smell or harmful gases, which reduces health risks during long-term operation. This makes the pump suitable for indoor tasks, such as houses, workshops, warehouses, and other closed spaces.

It is also ideal for city construction. Because the machine runs quietly and creates little disturbance, it can be used in urban environments where noise control is important. Small repair jobs, night work, or residential areas all become easier with an electric pump.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Electric Concrete Pump Parameter

Model	YG-20	YG-30	YG-40	YG-50
Motor power	22KW	37KW	45KW	55kw
Maximum outlet pressure		26mpa	28mpa	28mpa
Maximum theoretical throughput		16-18m³/h	20-22m³/h	35m³/h
The maximum particle size of aggregate		≤20mm	≤30mm	≤40mm
Vertical conveying distance	40m	80m	120m	150m
Horizontal conveying distance	80m	140m	2600m	300m
Diameter of the conveying pipe	80mm	φ80 (100) mm	φ100 (80) mm	Φ125/100mm
Whole machine weight	1600kg	2200kg	2400kg	2500kg
Dimensions	3400x1200x1600mm	3600x1500x1600mm	4000x1500x1550mm	4200*1700*1750mm

Request A Free Quote

How The Electric Concrete Pump Works

The electric concrete pumping machine is simple to operate. Workers only need basic training to start the machine safely.

1. Connect To A Power Supply
   The pump works after connecting to a stable electric source. This ensures continuous and clean power without fuel changes.
2. Receive Concrete From A Mixer Truck
   Concrete does not get mixed inside the pump. A mixer truck brings ready-mixed concrete and pours it into the hopper.
3. Pump Through A High-Pressure System
   The hydraulic system moves the concrete forward with a strong and stable force. The motor drives the pump to create high pressure for long-distance or high-height delivery.
4. Precise Control For Accurate Pouring
   Operators can adjust the flow and pumping speed. This helps achieve clean and even pouring, especially in narrow molds, foundations, or small construction spaces.

Request A Free Quote

Key Advantages Of An Electric Concrete Pump

The Electric Concrete Pump offers several important advantages that help contractors work faster and reduce long-term costs.

• Quiet Operation
  The electric motor reduces working noise. This is helpful for night construction or projects inside buildings.
• High Pumping Efficiency
  The machine delivers concrete smoothly and quickly. Its steady pressure makes the concrete flow reliable even in long pipelines.
• Low Maintenance Cost
  No fuel engine means fewer wearing parts. The pump needs fewer repairs over time.
• Long Service Life
  Electric systems have stable performance. With proper care, the pump can work for many years with fewer breakdowns.

Request A Free Quote

Application of Electric Concrete Pump for Sale

This Electric Concrete Pump for Sale is used in many small and medium construction jobs. Its size, quiet operation, and stable power make it flexible for a wide range of tasks.

1. Indoor Floor Construction

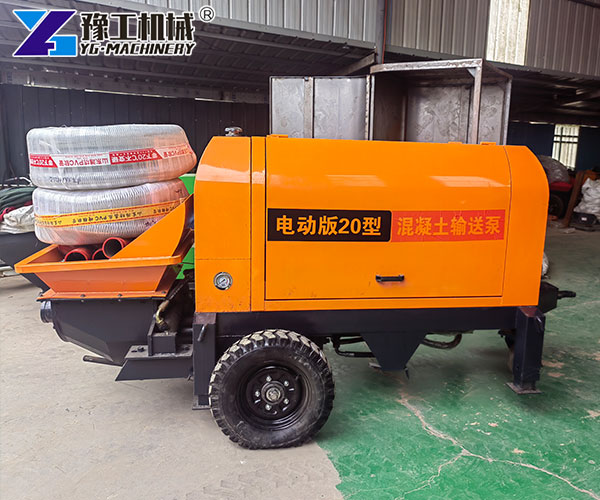

The pump is ideal for houses, warehouses, or workshops. It works safely inside closed spaces because there are no emissions.

2. Basement Projects

Basements often have narrow entrances and poor ventilation. The pump’s compact size and low-noise design make it very suitable for these areas.

3. City Road Repair

Road repair in cities requires fast and clean work. The pump can deliver concrete quickly without disturbing nearby residents.

4. Tunnel Engineering

Tunnels usually have limited space and require quiet equipment. The low-noise concrete pump helps workers complete the job safely and efficiently.

Request A Free Quote

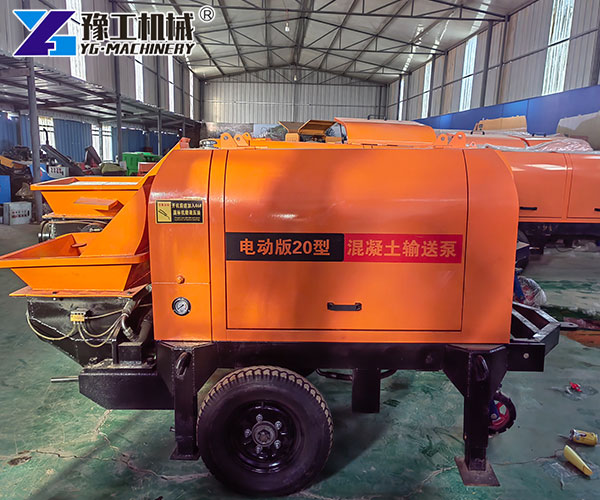

Energy-Saving Concrete Pump Helps Reduce Cost

Using an energy-saving concrete pump helps contractors save money in many ways.

• No Fuel Cost
  Electricity is cheaper than diesel. Over long-term use, this greatly reduces daily expenses.
• Lower Failure Rate
  Electric motors have simple structures and fewer parts to break. This reduces downtime.
• Lower Spare Parts Cost
  Maintenance parts such as filters, belts, and fuel components are not needed. This helps reduce yearly service costs.

These savings make the pump a smart investment for businesses looking for long-term efficiency.

Request A Free Quote

Maintenance Tips For Electric Concrete Pump Owners

Good maintenance helps extend the life of the pump and ensures safe daily operation.

1. Clean The Pipeline

After each job, clean the pipeline and hopper to prevent concrete buildup.

2. Check Motor Temperature

During long working hours, check the motor temperature to ensure it stays within normal limits.

3. Inspect Electrical System

Look for loose wires, damaged plugs, or worn connectors. A safe electrical system ensures stable performance.

Frequently Asked Questions

Q1: Can the pump mix concrete?
No. The pump only delivers concrete. A mixer truck must prepare the concrete first.

Q2: How far can the pump deliver?
Delivery distance depends on the model, pipeline length, and concrete quality. Electric pumps can usually handle common building distances.

Q3: Can the pump work underground?
Yes. Its low noise and zero emissions are perfect for basements, tunnels, and other enclosed spaces.

Q4: Does it require special training?
Basic operation training is needed, but the control system is simple and friendly for new workers.

YG Manufacturing Strength

YG provides professional Electric Concrete Pump solutions for global users. The company focuses on quality control, stable performance, and long-term reliability. All pumps are tested before shipping to ensure safe and efficient operation at the job site. YG also offers fast delivery, easy spare parts service, and technical support to help customers finish their projects with confidence.
