Forced Concrete Mixer

A Forced Concrete Mixer is widely used because modern construction needs stable concrete quality and fast production. In many projects, uneven mixing can cause cracks, low strength, and rework.

Compared with gravity mixers, forced mixing gives clear advantages:

• Concrete is mixed evenly, even with a low water ratio
• Mixing time is shorter for each batch
• Suitable for commercial concrete and engineering projects

In ready-mix plants and job sites, forced mixers help contractors keep quality stable while improving daily output.

Request A Free Quote

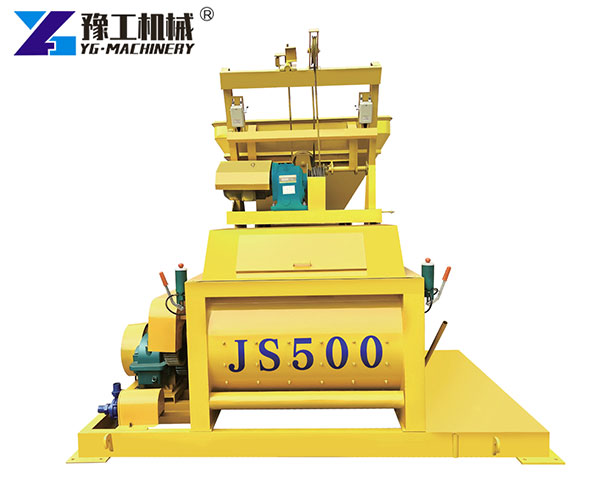

What Is A Forced Concrete Mixer

A Forced Concrete Mixer is a machine that uses rotating shafts and blades to mix materials by strong mechanical force. All materials are pushed, cut, and mixed at the same time.

Main working principle:

• Materials are forced to move by mixing blades
• Strong shear and rolling action improve uniformity
• The mixing result is not affected by gravity only

Core difference from gravity mixers:

• The gravity mixer relies on drum rotation
• Forced mixer controls mixing by blade design and speed

This makes forced mixers suitable for strict concrete quality requirements.

WhatsApp/WeChat/Phone: 86 138 3715 9132

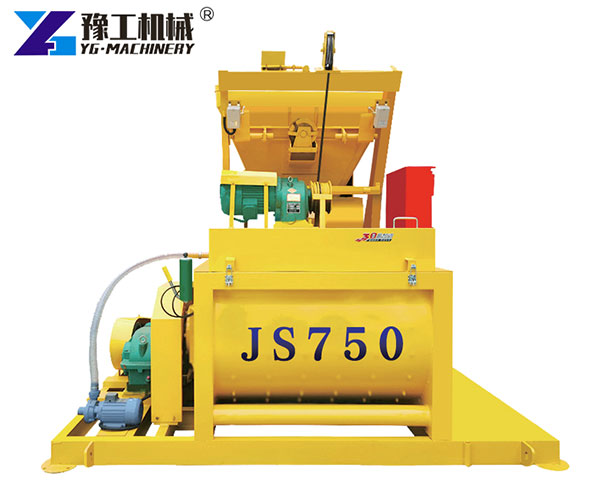

Product Parameters of Forced Concrete Mixer for Sale

Common parameters of forced concrete mixers include:

Model	JS-500	JS-750	JS-1000	JS-1500	JS-2000
Stirring motor power	18.5kw	30kw	37kw	44kw	60kw
Increase motor power	5.5kw	7.5kw	11kw	15kw	18.5kw
Water pump motor power	1.1kw	1.1kw	3kw	3kw	4kw
Overall size	4460*3050*5225mm	4950*3650*6225mm	8765*3436*9540mm	9645*3436*9700mm	10720*3870*10726mm
Total Weight	3.1T	4.2T	5.8T	9.86T	13.5T
Discharge capacity	500L	750L	1000L	1500L	2000L
Feeding capacity	800L	1200L	1600L	2400L	3200L
productivity	≥25M3/H	≥37.5M3/H	≥50M3/H	≥75M3/H	≥100M3/H
Rotating speed of mixing blade	35R/MIN	31R/MIN	25.5R/MIN	25.5R/MIN	23R/MIN
Hopper lifting speed	18M/MIN	18M/MIN	21.9M/MIN	23M/MIN	26.8M/MIN
Maximum particle size of aggregate	80MM/60MM	80MM/60MM	80MM/60MM	80MM/60MM	80MM/60MM
Unloading height	1.8-4.5M	1.8-4.5M	1.8-4.5M	1.8-4.5M	1.8-4.5M

Exact parameters depend on project scale and daily output needs.

Request A Free Quote

How A Forced Concrete Mixer Works

Material loading is done through a hopper or a conveyor. Cement, sand, aggregate, and water enter the mixing chamber.

The mixing process includes:

• Mixing shafts rotate at a fixed speed
• Blades push materials forward and backward
• Strong shear breaks material clusters

After mixing, concrete is discharged from the bottom. The mixing cycle is controlled by time settings, allowing continuous operation on site.

Key Benefits Of Using A Forced Concrete Mixer

Using a Forced Concrete Mixer brings clear benefits for construction users:

• More uniform mixing and stable concrete strength
• Suitable for different mix designs and materials
• Shorter mixing cycle improves productivity
• Ideal for engineering and continuous work

These advantages make forced mixers a key part of modern concrete mixing equipment.

Request A Free Quote

Main Types Of Forced Concrete Mixers

Single Shaft Forced Concrete Mixer

This type is simple in structure and easy to maintain. It is suitable for small and medium projects with stable mix designs.

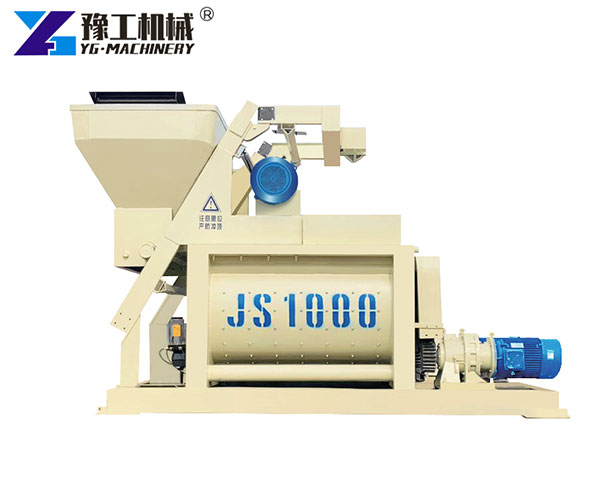

Twin Shaft Concrete Mixer

A twin-shaft concrete mixer uses two synchronized shafts for a stronger mixing force. It is widely used in concrete batching plants and large projects.

Other classifications include:

• Fixed type vs mobile type
• Engineering type vs industrial concrete mixer

Each type fits different job site needs.

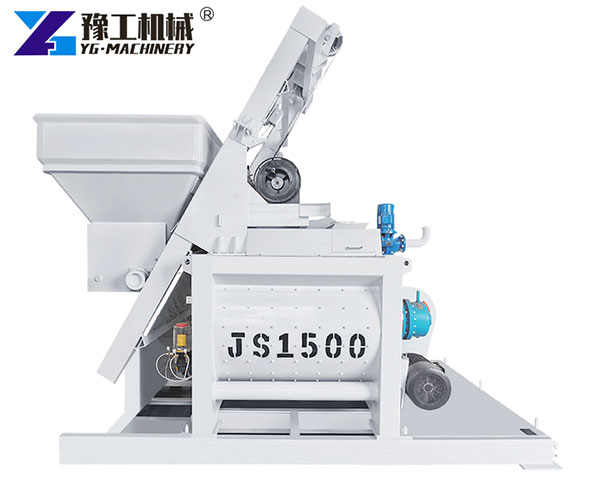

Technical Features That Affect Mixing Performance

Several technical factors decide mixing quality:

• Shaft and blade design affect material flow
• The drive system and gearbox ensure a stable speed
• Mixing capacity must match daily output
• The control system improves safety and operation

Reliable concrete mixing equipment helps reduce downtime and maintenance costs.

Request A Free Quote

How To Choose The Right Forced Concrete Mixer

When selecting a Forced Concrete Mixer for Sale, buyers should consider:

• Project type and daily concrete demand
• Complexity of concrete mix ratio
• Available space at the job site
• Spare parts supply and maintenance cost

For continuous projects, industrial models offer better long-term value.

When A Forced Concrete Mixer Is NOT Recommended

A forced mixer may not be the best choice in some cases:

• Very small and low-frequency projects
• Simple mortar mixing only
• Temporary jobs with low-quality demand
• Sites without stable power or foundation

Choosing the right equipment avoids unnecessary cost.

Request A Free Quote

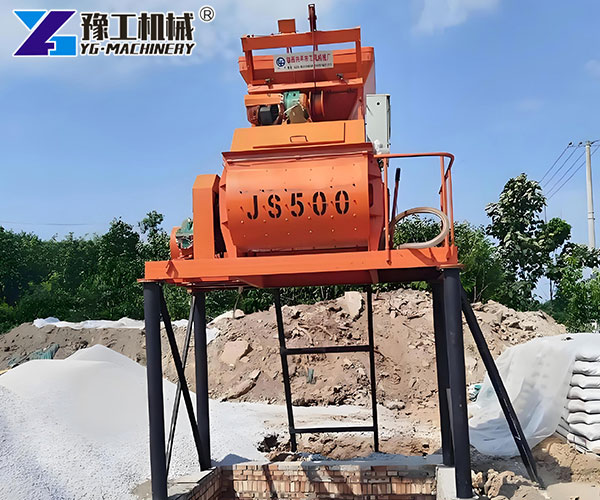

Application Scenarios

Forced concrete mixers are commonly used in:

• Commercial concrete batching plants
• Construction contractors and builders
• Precast concrete factories
• Municipal and infrastructure projects

Their stable performance supports long-term construction needs.

Frequently Asked Questions

Is a compulsory concrete mixer suitable for dry concrete?
Yes, a compulsory concrete mixer can handle dry and low-slump concrete better than gravity mixers.

How long does one mixing cycle take?
Usually 30 to 60 seconds, depending on capacity and material type.

Is it easy to maintain?
Daily maintenance is simple, mainly checking blades, shafts, and lubrication points.
