Hydraulic Wall Saw

A hydraulic wall saw is the ideal solution for deep and precise cutting in reinforced concrete, brick, and stone structures. Powered by a dedicated hydraulic pump station, it delivers high torque, stable output, and professional cutting performance for construction, renovation, and demolition projects.
If your project requires smooth cutting, minimal vibration, and high structural accuracy, a hydraulic wall saw is the right choice.

What Is a Hydraulic Wall Saw?

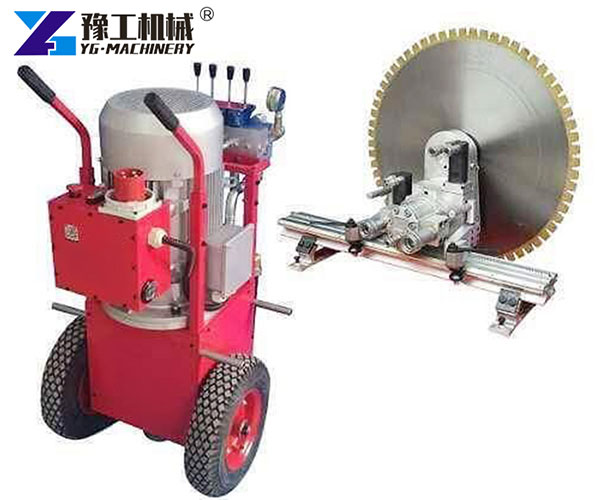

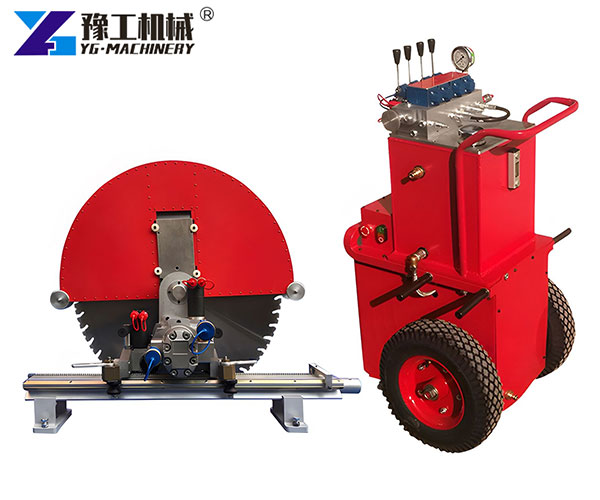

A hydraulic wall saw consists of two main parts:

• Hydraulic power station (pump station)
• Saw head with hydraulic motor

The hydraulic motor rotates the diamond blade with strong and stable torque, allowing the machine to cut through thick and heavily reinforced concrete.
Compared with handheld or electric cutters, a hydraulic wall saw provides deeper cutting depth, higher precision, and better reliability in demanding environments.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Why Choose Our Hydraulic Wall Saw?

• Deep cutting capacity up to 730 mm
• Stable torque output for reinforced concrete and stone
• Low vibration & smooth cutting — protects structural integrity
• Flexible mounting and track system for straight-line precision
• Multiple voltage options for international projects
• Wireless remote control option for safer cutting positions

Whether you are cutting window openings, enlarging doors, modifying foundations, or removing structural walls, a hydraulic wall saw offers the power and control your project needs.

Parameters of Hydraulic Wall Saw

Choose the best model based on cutting depth, voltage options, and working environment.

Hydraulic Oil Pump	Model	YG 600	YG 700
	Max. power	25KW	30KW
	Motor cooling method	Air cooling	water cooling
	Rated voltage	380V 50HZ	380V-420V 50HZ-60HZ
	Pressure stages	3	3
	Max. operating pressure	200bar/20Mpa	210bar/21Mpa
	Oil flow rate	30-80L/min	40-100L/min
	Dimensions	600mm*650mm*1050mm	500mm*520mm*1100mm
	Weight	220kg	140kg
WallSaw	Saw blade diameter range	800-1400mm	800-1600mm
	Cutting depth	620mm	730mm
	Max. working pressure	180bar/18Mpa	200bar/20Mpa
	Max. oil flow rate	100l/min	100l/min
	Gearing	Gear	Gear
	Rotation speed	450/950/1300Rpm	450/850/1200Rpm
	Dimension	400mm*420mm*400mm	400mm*420mm*400mm
	Weight	38kg	39kg

Request A Free Quote

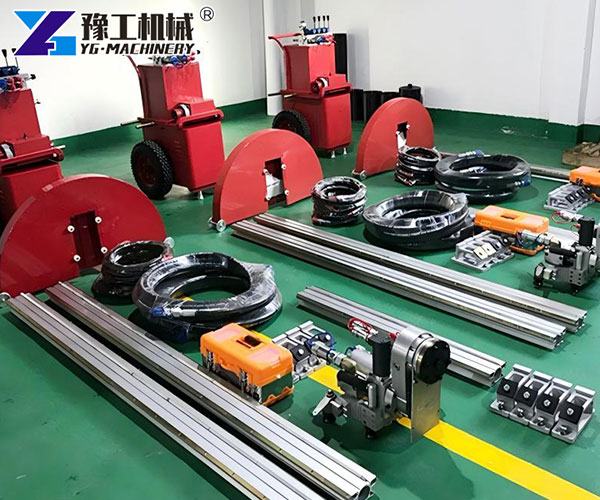

Standard Configuration (Ready to Work)

Each hydraulic wall saw for sale includes:

• Hydraulic pump station
• Wall saw head
• Rails: 1 m ×1, 2 m ×1
• Oil hoses: 10 m ×6
• Saw guard 850 mm
• Saw blade 800 mm
• Mounting brackets ×4
• Track stoppers ×4
• Tool kit ×1

No additional accessories required — install and cut immediately.

Request A Free Quote

How to Choose the Right Hydraulic Wall Saw

1. Determine maximum cutting depth → select blade size + model
2. Confirm voltage requirements → 220V / 420V / 440V / 480V / 50Hz / 60Hz
3. Consider job site safety → choose 800TM for wireless control
4. Project frequency & intensity → water-cooled systems perform better in continuous use

If you need professional guidance, tell us your cutting depth + material + power supply, and we will recommend the best model and blade package.

Applications of Hydraulic Wall Saw

• Deep openings for doors and windows
• Bridge repair and reinforcement
• Building modification & demolition
• Basement and foundation cutting
• Large concrete slabs, beams & columns
• Infrastructure construction projects

The hydraulic wall saw delivers high precision without damaging surrounding structures, making it suitable for urban construction and renovation.

Request A Free Quote

Hydraulic Wall Saw Price & Cost Factors

The final hydraulic wall saw price depends on:

• Machine model & cooling system
• Saw blade diameter & quantity
• Wireless remote option
• Voltage customization
• Shipping method (EXW / FOB / CIF)

Tell us your location and requirements to receive an accurate quotation within 24 hours.

Frequently Asked Questions

Q1: What is the max cutting depth of your hydraulic wall saw?
Up to 730 mm, depending on model and blade size.

Q2: Can the hydraulic wall saw cut reinforced concrete?
Yes, it is designed for steel-reinforced concrete and thick structures.

Q3: Can I use blades larger than 1600 mm?
Special customization is available upon request.

Q4: Does the 800TM support wireless control?
Yes, the 800TM model includes wireless remote operation for safer cutting.

Q5: What voltage options are available?
220V / 420V / 440V / 480V in 50Hz or 60Hz, depending on project needs.

Request Pricing for Hydraulic Wall Saw

Looking for the right cutting solution?
Contact us today to get:

• Model recommendation
• Blade configuration guide
• Latest hydraulic wall saw price
• Delivery time & shipping options
