Self-Loading Concrete Mixer

Why A Self Loading Concrete Mixer Is Popular In Modern Construction

A self-loading concrete mixer has become a key machine in many building projects because it can finish several tasks at the same time. It works as a loader, a batching unit, a mixer, and a transporter.

It helps contractors by:

• Reducing the need for a fixed batching plant.
• Cutting the number of workers needed on site.
• Making fresh concrete at any time and in any location.

For small and medium projects, this single machine improves job-site control and reduces delays.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Product Parameters of Self-Loading Concrete Mixer

Typical models range from 1.8 CBM to 4.0 CBM. Basic specs:

Model	YG1.8	YG2.6 C	YG3.5 C	YG4.0 C
Output per Lot	1.6 m³	2.6 m³	3.5 m³	4.0 m³
Production Capacity	8 m³/h	11 m³/h	15.5 m³/h	18 m³/h
Engine Power	78 KW	78 KW	85 KW	91 KW
Climbing Capacity	30°	30°	40°	40°
Weight	6300KG	7000KG	8250KG	9000KG
Length/width/height	6700*2340*2700mm	6650*2700*3200mm	7300*2750*3350mm	7700*2950*3400mm
Wheelbase	2500mm	2770mm	2750mm	2950mm

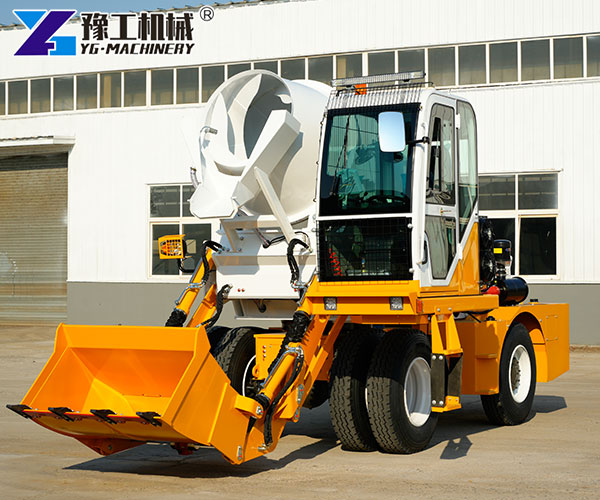

How The Mobile Batching Mixer Simplifies Concrete Production

A mobile batching mixer makes the whole mixing process much easier. One operator can control loading, measuring, mixing, and unloading.

Key steps include:

• Bucket Loading: The front bucket loads sand, gravel, and cement.
• Weighing Sensors: Built-in sensors help control the material ratio.
• Drum Mixing & Unloading: The drum rotates to mix and then unloads the concrete.
• Single-Person Operation: All controls are inside the cab.

This design reduces labour needs and speeds up daily work.

Request A Free Quote

Core Features Of A Self-Loading Concrete Mixer

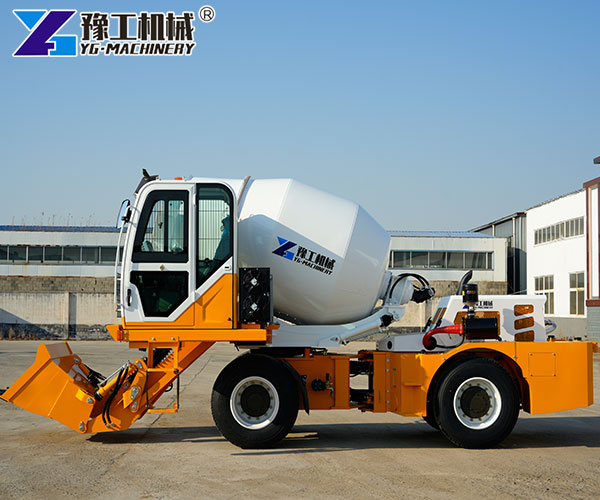

As an automatic self-loading concrete mixer truck, the machine offers many strong features that support safe and stable performance:

• A heavy-duty frame that handles rough job sites.
• A powerful engine for climbing slopes and long working hours.
• A comfortable cab with a clear display, camera options, and easy controls.
• Four-wheel steering for tight turns and narrow roads.

These features make the self-loading concrete mixer a reliable choice for construction teams.

Best Job-Site Applications of Concrete Mixing Equipment

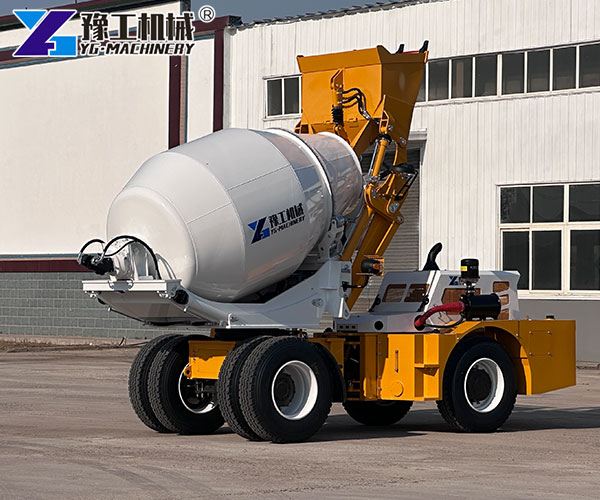

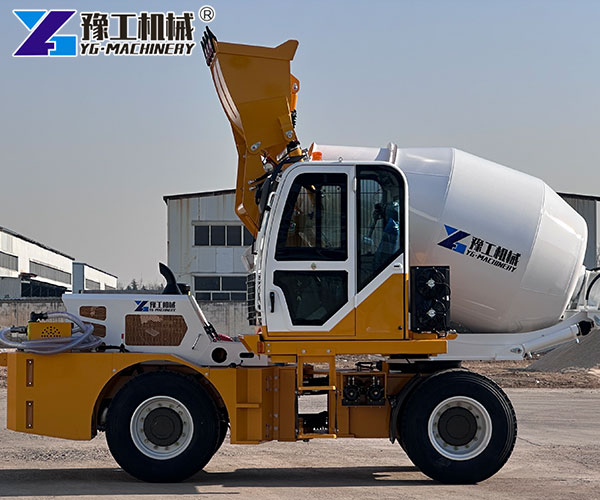

As highly practical concrete mixing equipment, this mixer works well in many settings:

• Town and city construction
• Concrete road building
• Rural houses and farm structures
• Small commercial projects such as shops, warehouses, and drainage jobs

It allows users to produce fresh concrete even in places with no power or fixed plant.

Request A Free Quote

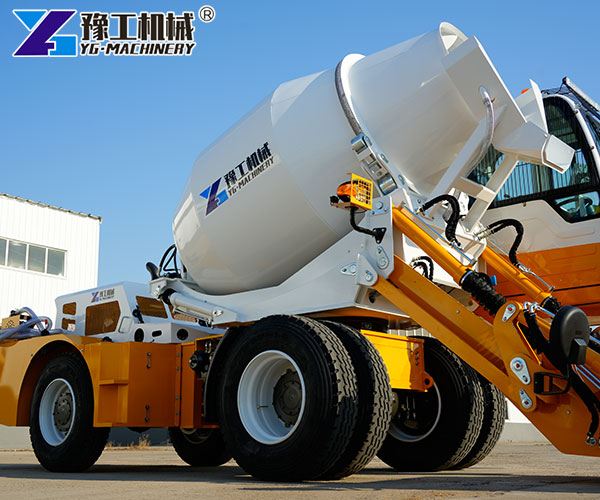

Cost Advantages For Contractors: Use an All-Terrain Concrete Mixer

An all-terrain concrete mixer helps save money across the entire project lifecycle:

1. Lower Labor Cost
   One machine replaces loaders, mixers, and transport trucks.
2. Lower Transport Cost
   Concrete is produced directly at the job site, so no long-distance hauling.
3. Less Material Waste
   Accurate measurement helps avoid overuse of cement and aggregates.

These savings are especially useful for small companies that want to stay competitive.

Service Support YG Machinery Provide

To help users get the most from their machine, we offer:

• Remote Technical Support
  Quick help for setup or troubleshooting.
• Fast Spare Parts Delivery
  To keep your mixer working with minimum downtime.
• Operator Training
  So new users can run the mixer safely and efficiently.

Request A Free Quote

Daily Operation Safety Tips

Safe use of a self-loading cement mixer is important for long machine life and worker safety. Basic tips include:

• Clean the drum after each day to avoid hard buildup.
• Use low gear and steady speed when driving on slopes.
• Load materials in the correct order to keep the drum stable.

Following these steps helps maintain the machine and reduces risk during operation.
