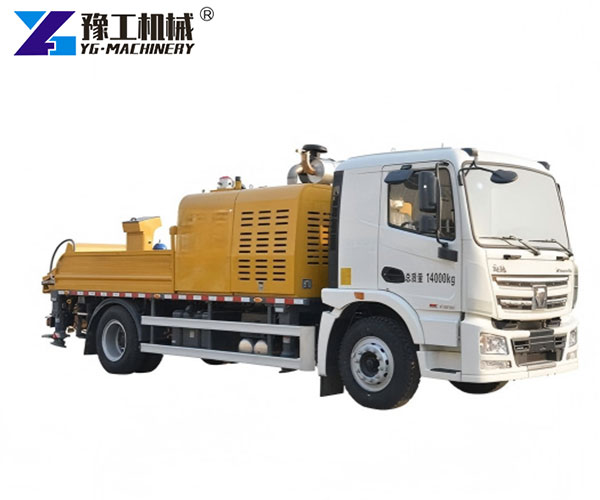

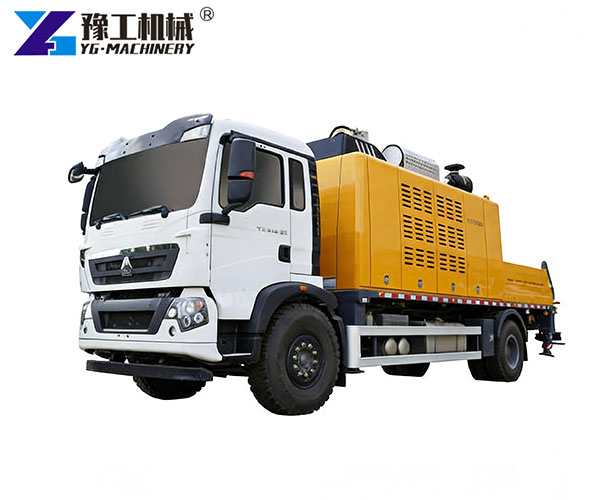

Truck-Mounted Concrete Line Pump for Sale

A Truck-Mounted Concrete Line Pump is a practical solution for contractors who need fast concrete delivery with high mobility. Mounted on a truck chassis, this equipment combines transport and pumping in one unit, reducing setup time and improving jobsite efficiency. It is used in residential, municipal, and small commercial projects where flexibility, cost control, and stable pumping matter most.

Request A Free Quote

What Is A Truck Mounted Concrete Line Pump

A Truck-Mounted Concrete Line Pump is a concrete pumping system installed directly on a truck. Unlike trailer pumps that need towing, this machine can drive to the jobsite and start work quickly.

Concrete is pumped through steel pipes or rubber hoses to the pouring area. This method is ideal when boom reach is not required but precise placement is needed.

It is often called a Concrete line pump truck in the construction industry and is known for its simple operation and strong adaptability.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Product Specifications of Truck-Mounted Concrete Pump

The specifications of a Truck-Mounted Concrete Line Pump may vary by model and configuration. Common parameters include:

Item	Parameter / Sub-item	Specification / Value	Unit / Remarks
Driving System	Fuel Type	Diesel
	Displacement / Power	6.7 / 156	L / kW
	Displacement Standard	Euro III
	Tire Model	8.25R20
	Axle Base	5	m
	Quantity Of Axles	2
	Max. Driving Speed	90	km/h
	Front Wheel Base	1900	mm
	Back Wheel Base	1800	mm
	Min. Turning Radius	9	m
Pumping System	Diesel Engine Power	186	kW
	Driving Mode	Hydraulic Driving
	Oil Cylinder Inner Diameter × Stroke	Ф180×Ф125×1800	mm
	Concrete Cylinder Inner Diameter × Stroke	Ф230×1800	mm
	Oil Pressure Of System	32	MPa
	Switch Of H-Pressure And L-Pressure	Equipped
	Fuel Tank Capacity	290	L
	Oil Tank Capacity	600	L
	Cooling Mode Of Hydraulic System	Fan Cooling
	Max. Theoretical Capacity	H-Pressure: 55	m³/h
		L-Pressure: 100
	Pumping Distance (H-Pressure)	Max. Horizontal: 880	Using 125A Pipe (m)
		Max. Vertical: 220
	Hopper Capacity	0.6	m³
	Feeding Height	≤1500	mm
	Concrete Slump	14~23	cm
	Max. Aggregate Diameter	Crushed Stone: 40	mm
		Pebble: 50
	Valve	S Valve
	Water Pump For Cleaning	Equipped
	Concrete Pipe Cleaning Mode	Water Cleaning
	Water Tank Capacity	400	L
	Lubrication Mode	Automatic
Overall Dimension	Length × Width × Height	9195 × 2458 × 2623	mm
Full-Load Total Weight		13500	kg

YG Machinery can adjust specifications based on project needs and local regulations.

Request A Free Quote

Main Advantages Of Using a Truck-Mounted Concrete Line Pump

High Mobility And Fast Jobsite Setup

A truck-mounted concrete pump can move between sites without extra transport tools. Once it arrives, setup is quick and simple.

Main benefits include:

• No need for towing equipment
• Faster daily job turnover
• Less labor is needed on-site

This makes it suitable for contractors handling multiple small projects.

Stable Concrete Pumping Performance

The pumping system delivers smooth and continuous concrete flow. This reduces blockages and improves surface quality after pouring.

Key points:

• Stable hydraulic system
• Consistent output pressure
• Works with common concrete mixes

This stability helps reduce material waste and rework.

Lower Operating Cost Compared With Boom Pumps

Compared with boom pumps, a Truck Mounted Concrete Line Pump has lower purchase and running costs.

Cost advantages include:

• Lower fuel consumption
• Fewer hydraulic parts
• Easier daily maintenance

For projects without high reach needs, this is a more economical choice.

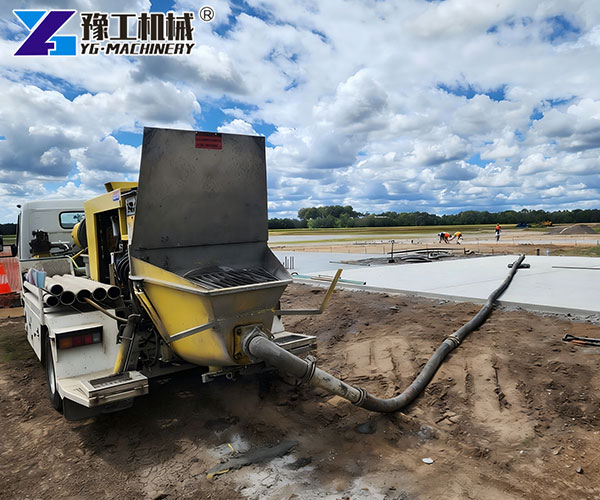

Flexible Pipeline Layout For Complex Job Sites

Pipelines can be routed around obstacles such as walls, fences, or narrow access points. This is where a mobile concrete pumping machine shows strong flexibility.

It works well for:

• Narrow residential areas
• Renovation projects
• Sites with limited space

Operators can adjust pipe layout as work progresses.

Request A Free Quote

Typical Applications Of Truck Mounted Concrete Line Pumps

This type of pump is widely used in:

• Residential house construction
• Foundations and footings
• Slab and floor pouring
• Municipal road repair
• Small commercial buildings
• Agricultural and industrial workshops

The Concrete line pump truck is especially popular for short-distance and medium-volume concrete delivery.

Main Components And Working Principle

A standard Truck-Mounted Concrete Line Pump includes several core systems:

• Pumping unit with twin hydraulic cylinders
• Hydraulic control system
• Concrete hopper with mixing blades
• Pipeline system for delivery
• Diesel engine or PTO power source
• Truck chassis for transport

Concrete enters the hopper, is pushed by pistons, and flows through the pipeline to the pouring point.

Request A Free Quote

How To Choose The Right Truck-Mounted Concrete Line Pump

Pumping Capacity And Pressure Requirements

Select a capacity based on the project size and pumping distance. Larger buildings need higher pressure and output.

Consider:

• Daily concrete volume
• Vertical and horizontal distance
• Concrete mix consistency

Truck Chassis Options

Different chassis brands and load ratings are available.

Key factors:

• Local road rules
• Load capacity
• Service availability

YG Machinery supports multiple chassis options for export markets.

Concrete Type And Aggregate Size

Ensure the pump is compatible with your concrete mix.

Check:

• Maximum aggregate size
• Slump range
• Special additives

Wrong matching can cause pipe blockage.

Maintenance And After-Sales Support

Reliable support helps reduce downtime.

Important points:

• Easy access to wear parts
• Clear maintenance design
• Technical support and spare parts supply

YG provides long-term service support for overseas customers.

When a Truck-Mounted Concrete Line Pump Is Not The Best Choice

This equipment may not be suitable for:

• High-rise buildings with large vertical height
• Large-volume continuous pouring projects
• Jobs that require wide horizontal coverage without pipe movement

In such cases, boom pumps or stationary pumps may be more efficient.

Request A Free Quote

Truck-Mounted Concrete Line Pump FAQs

Q1: Can this pump handle different concrete mixes?
Yes, it works with most standard construction concrete.

Q2: Is it easy to operate?
Yes, basic training is enough for daily operation.

Q3: How long is the service life?
With proper maintenance, it can work reliably for many years.

Q4: Is customization available?
Yes, output, chassis, and configuration can be customized.

Why Choose YG Machinery

YG Machinery is a professional manufacturer and exporter of concrete equipment, including Truck Mounted Concrete Line Pumps, concrete mixers, boom pumps, batching plants, and other construction machinery. With strong manufacturing experience, stable quality control, and reliable global service support, YG helps customers reduce costs and improve construction efficiency across different markets.
