YG-20 Curb And Gutter Machine

The YG-20 small curb and gutter machine is designed for municipal and urban road projects that need stable slipform paving in limited spaces. This machine is widely used to form concrete curbs, gutters, road shoulders, and side ditches with continuous and uniform results.

As a compact slipform solution, the YG-20 helps contractors reduce labor costs, improve paving efficiency, and achieve clean concrete edges without traditional formwork.

Request A Free Quote

What Is the YG-20 Small Curb And Gutter Machine

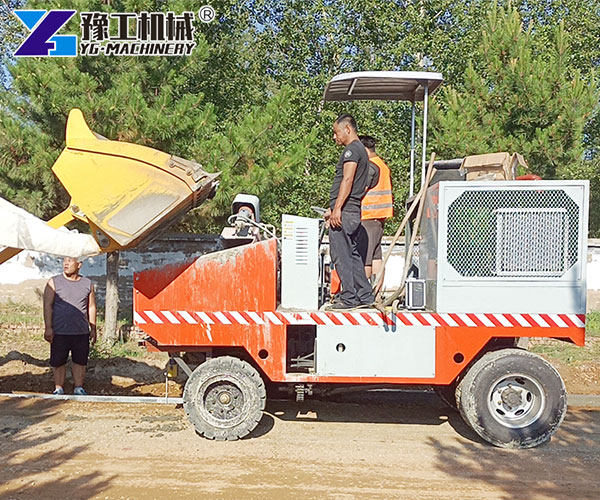

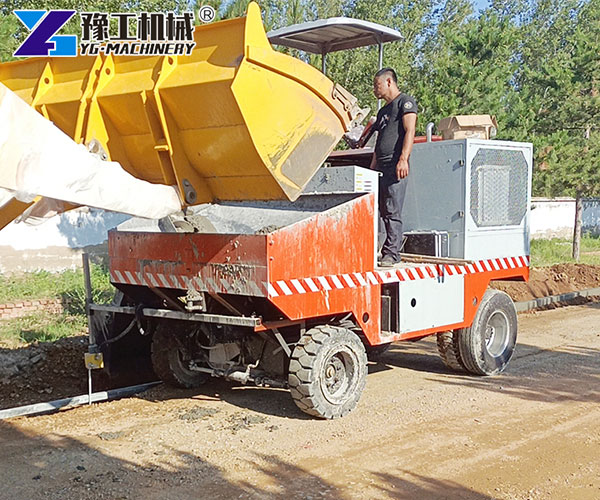

The YG-20 is a slipform paving machine that shapes fresh concrete into curbs and gutters while moving forward. Concrete is fed into the hopper, mixed by a screw system, vibrated at high frequency, and then shaped by a mold in one continuous process.

Compared with traditional manual formwork, this small curb and gutter machine offers:

• Continuous paving without stopping
• Stable structure, shape, and smooth surface
• Lower labor demand and faster project progress

It is especially suitable for city roads, residential streets, and industrial park infrastructure.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Key Construction Capacity and Application Range

The YG-20 is designed for small to medium concrete profiles commonly used in urban projects.

Main construction scope includes:

• Width: up to 2000 mm
  • Road shoulders
  • Side ditches
• Height: up to 600 mm
  • Curbs
  • Curbstones

This range covers most municipal curb and gutter designs while keeping the machine compact and easy to transport.

Request A Free Quote

Compact Structure With Stable Operating Weight

The YG-20 has an overall size of 5200 × 2400 × 2800 mm, allowing it to work in narrow job sites such as city streets and residential areas.

With an unladen weight of about 7000 kg, the machine provides:

• Strong crawler grip
• Good paving stability
• Smooth slipform shaping on flat or sloped roads

The stable weight helps prevent vibration loss and improves the final concrete surface quality.

Reliable Diesel Power and Electrical System

This small curb and gutter machine is powered by a 65 kW inline 4-cylinder turbocharged diesel engine, suitable for long working hours and tough job sites.

Key power features include:

• Strong torque for continuous concrete feeding
• Extra power output option for high-altitude areas
• Rated speed of 1500 rpm for stable operation

The electric start system and AC 380V operating voltage ensure easy startup and reliable daily use.

Advanced Slipform Molding and Vibration System

The YG-20 uses a high-frequency vibrator designed for plastic concrete, ensuring dense and strong concrete structures.

Main molding advantages:

• Better concrete compaction
• Higher curb and gutter strength
• Smooth surface finish

An attached vibration motor supports different concrete conditions, helping contractors adjust to various mix designs.

Request A Free Quote

Automatic Leveling and Steering Control

To improve paving accuracy, the YG-20 can be equipped with an optional imported automatic leveling system.

Leveling features include:

• Leveling range of ±40 mm
• Temperature compensation
• Overvoltage and overcurrent protection

The machine also uses a dual automatic steering system as standard, allowing stable and accurate line control during continuous slipform paving.

Efficient Drive and Feeding System

The YG-20 small curb and gutter machine uses full-time four-wheel drive, helping it move smoothly on different road surfaces.

Concrete feeding is handled by a high-torque hydraulic gerotor motor, which provides:

• Continuous concrete flow
• No blockage from large aggregates
• Secondary mixing for better concrete workability

This system helps maintain consistent molding quality throughout the paving process.

Request A Free Quote

Typical Projects for the YG-20 Model

The YG-20 is commonly used in:

• Municipal road construction
• Residential street upgrades
• Industrial park infrastructure
• Parking lots and internal roads

Its compact size and stable performance make it a practical choice for contractors handling frequent urban projects.

Why Choose the YG-20 Small Curb And Gutter Machine

Contractors choose the YG-20 because it delivers strong value in daily construction work:

• Compact design for tight job sites
• Stable slipform paving quality
• Reduced labor and formwork cost
• Easy operation and maintenance

This curb and gutter machine offers a reliable balance between performance, efficiency, and investment cost.

Get a YG-20 Slipform Solution for Your Project

If you are looking for a small curb and gutter machine for sale, leave a message to get detailed specifications, mold options, and pricing based on your project needs.
