A Mobile Shot Blaster is a powerful solution for modern construction projects that require clean, strong, and well-prepared surfaces. Whether you are working on highways, bridges, or industrial floors, this machine quickly removes old coatings, dirt, and weak layers. Compared with traditional methods, it offers better efficiency, cleaner operation, and more stable results, making it an ideal choice for contractors who want reliable performance.
What Is A Mobile Shot Blaster
A Mobile Shot Blaster is a mobile shot-blasting machine used to treat concrete and asphalt surfaces. It works by throwing small steel shots at high speed onto the surface. This process removes dust, oil, coatings, and weak layers.
Main Uses
- Concrete floor preparation
- Asphalt road cleaning
- Bridge deck treatment
- Airport runway maintenance
Difference From Other Methods
- Grinding machines only polish the surface
- Milling machines remove thick layers but damage the base
- Shot blasting keeps the structure strong while cleaning
Because of these features, it is widely used as road surface preparation equipment in many construction projects.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Why Choose A Mobile Shot Blaster
Better Surface Preparation Quality
The machine creates a uniform rough surface. This improves coating adhesion and ensures longer service life.
High Efficiency And Continuous Operation
- Works continuously without stopping
- Covers large areas quickly
- Reduces project time
Integrated Dust Collection System
- Built-in vacuum system
- Dust-free working environment
- Meets environmental standards
Lower Labor And Maintenance Cost
- Steel shots are recycled automatically
- Less manual work is needed
- Lower long-term operating cost
Mobile Shot Blaster Vs Traditional Surface Preparation Methods
When comparing a concrete surface shot blasting machine with other tools, the differences are clear.
Efficiency
- Shot blasting: fast and continuous
- Grinding: slow and limited
- Milling: fast but rough
Surface Quality
- Shot blasting: uniform and clean
- Grinding: smooth but weak
- Milling: uneven surface
Cost
- Shot blasting: low long-term cost
- Grinding: high labor cost
- Milling: high equipment cost
Environmental Impact
- Shot blasting: dust controlled
- Grinding: dust pollution
- Milling: noise and debris
This is why more contractors choose it as reliable road surface preparation equipment.
How A Mobile Shot Blaster Works
The working process of a mobile shot blasting machine is simple but highly effective:
- A high-speed turbine throws steel shots onto the surface
- The impact removes dirt, coatings, and weak layers
- A vacuum system collects dust and debris
- Steel shots are recycled and reused
Key Features
- Fully automatic operation
- Continuous workflow
- Low material loss
This system ensures stable performance and high efficiency.

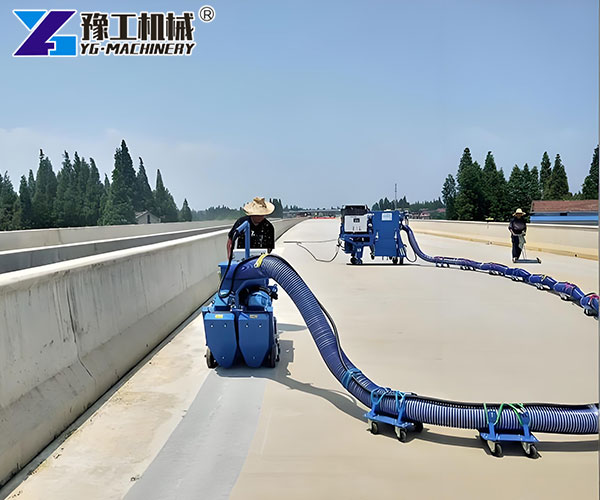

Applications In Construction Projects
The portable shot blasting machine is suitable for many real-world projects:
- Concrete floor preparation before epoxy coating
- Bridge deck waterproofing
- Airport runway cleaning
- Highway maintenance
- Industrial floor renovation
It is especially useful when high surface quality is required.
Real Project Case: Thailand Road Construction
In a recent project, our floor shot blaster machine was exported to Thailand for a highway renovation job. The contractor needed to remove old road markings and prepare the surface for a new coating.
Project Results
- Increased working efficiency by 40%
- Achieved uniform surface roughness
- Reduced dust pollution on the site
👉 You can read the full case here:
Floor Shot Blaster for Sale Exported to Thailand Road Project
This case shows how a Mobile Shot Blaster can improve both quality and speed in real construction environments.
Technical Specifications
When choosing a floor shot blaster machine, understanding the specifications is important.
Typical Parameters
| Model | YG-270(Single) | YG550 | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||
A portable shot blasting machine is often preferred for small to medium projects due to its flexibility.
Key Components & Engineering Advantages
A high-quality mobile shot blasting machine depends on strong core components:
Main Components
- High-performance blasting turbine
- Wear-resistant liner plates
- Efficient dust collector system
- Durable steel shot recycling system
Engineering Advantages
- Long service life
- Stable performance
- Industrial-grade design
These features ensure reliable operation even in tough environments.
Operation Tips For Stable Performance
To get the best results from your Mobile Shot Blaster, follow these simple tips:
- Control the walking speed for even treatment
- Check steel shot condition regularly
- Keep the machine well sealed
- Clean the dust filter system on time
These steps help extend machine life and maintain performance.
When Should You NOT Use A Mobile Shot Blaster
Although very useful, this machine is not suitable for all situations:
- Severely damaged surfaces (need repair first)
- Soft materials that cannot handle impact
- Very small or narrow spaces
- Projects requiring deep material removal
In these cases, other equipment like milling machines may be more suitable.
Common Product Questions
1. What Surfaces Can It Handle?
Concrete, asphalt, and steel surfaces are suitable.
2. Is It Easy To Operate?
Yes, most machines are designed for simple operation with basic training.
3. Does It Produce Dust?
No, the built-in system collects dust efficiently.
4. How Long Do Steel Shots Last?
They can be reused many times, reducing cost.
5. Is It Suitable For Small Projects?
Yes, especially with a portable shot blasting machine.
